SimpleGraphModule

SimpleGraph Excel module

The SimpleGraph Excel module makes Microsoft Excel workbooks accessible via the Apache POI API see Apache POI XSSF/HSSF.

Sources

System: ExcelSystem.java
JUnit-Test: TestExcelSystem.java

Mental Model

Mapping rules

Each Vertex type (by label) is converted to an Excel sheet
Each Edge type (by label) is converted to an Excel sheet
Each vertex is converted to a row
Each vertex property is converted to a cell
Each edge is converted to a row
Each edge property is converted to a cell
The header row for Vertices has a column for each property key
The header for for Edges has a column for each property key + an in and and out column
The in and out header columns for edges have the label of the corresponding vertex in parentheses

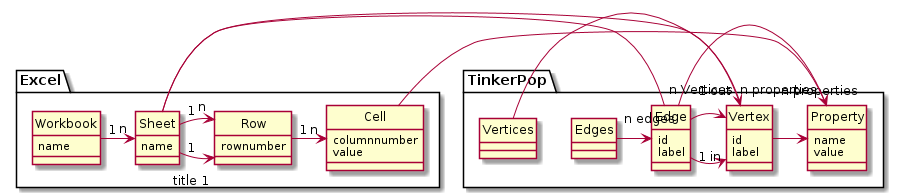

UML diagram

Examples

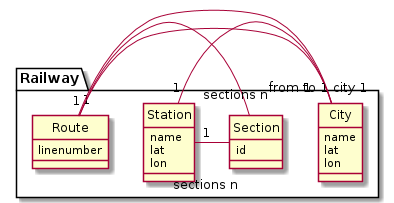

Modern

File:Modern.xlsx

AirRoutes

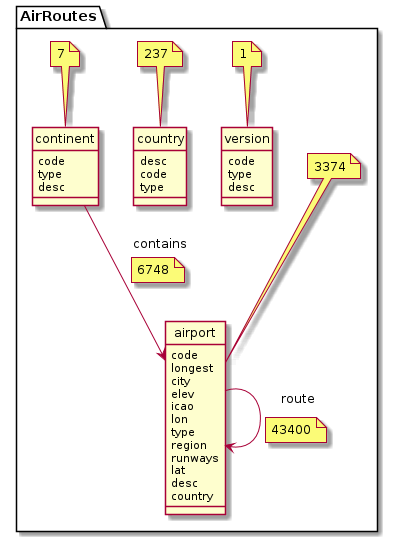

The UML diagram and excel table is not fully consistent with the graph. The graph can have contains edges between airport and country.

File:Air-routes.xlsx

@Test
  public void testCreateExcelAirRoutes() throws Exception {
    ExcelSystem es = new ExcelSystem();
    Graph graph = TestTinkerPop3.getAirRoutes();
    GraphTraversalSource g = graph.traversal();
    // es.setDebug(true);
    Workbook wb = es.createWorkBook(g);
    assertEquals(6, wb.getNumberOfSheets());
    es.save(wb, testAirRouteFileName);
}
